HVC - HVC Series Masking

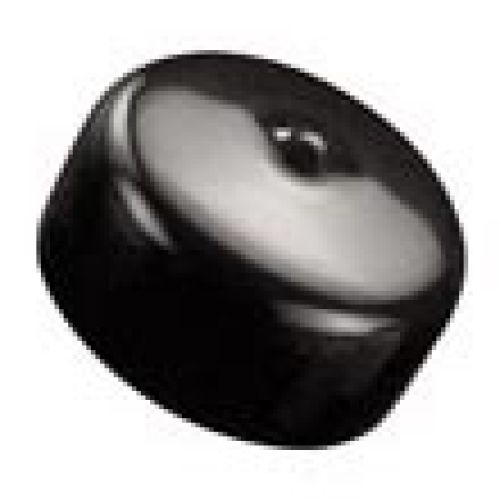

Flexible Round Caps - Flex500™

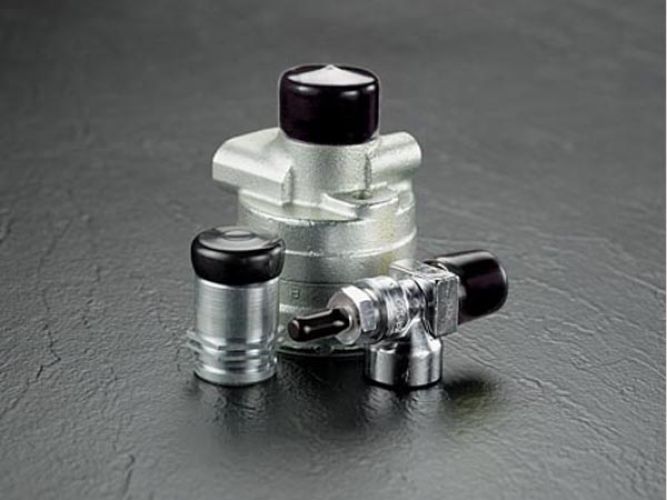

The HVC series High temperature, flexible vinyl round caps. Ideal as thread protectors, dust and moisture seal and masking during surface coating operations.

  • Flex 500™ material, High temperature alternative to silicone
  • Temperature up to 260°C
  • For a low temperature solution, please see our VC range in our standard vinyl
  • Custom lengths available

Material: Flex500™ Vinyl

Standard Colour: Black
Optional Colour: Yellow


Type: Masking Products, Masking Caps, Protection & Finishing , Caps

Material: High Temperature Vinyl, Thermoplastic Rubber, Vinyl

Applications: Masking

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

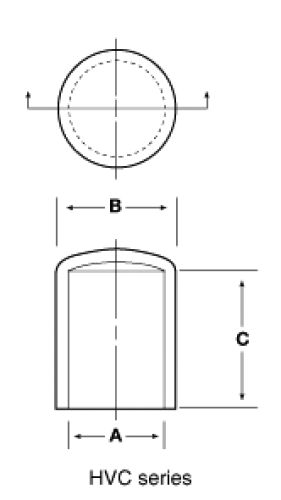

Part Number Dim A (mm) Dim B (mm) Dim C (mm)
HVC-062-10 1.57 3.05 15.88
HVC-080-10 2.03 3.56 15.88
HVC-093-12 2.36 3.81 19.05
HVC-109-12 2.77 4.57 19.05
HVC-125-8 3.18 5.08 12.70
HVC-125-16 3.18 5.08 25.40
HVC-140-8 3.56 5.33 12.70
HVC-140-16 3.56 5.33 25.40
HVC-148-8 3.76 6.10 12.70
HVC-148-16 3.76 6.10 25.40
HVC-156-8 3.96 6.10 12.70
HVC-156-16 3.96 6.10 25.40
HVC-172-8 4.37 6.35 12.70
HVC-172-16 4.37 6.35 25.40
HVC-180-8 4.57 6.60 12.70
HVC-180-16 4.57 6.60 25.40
HVC-187-8 4.75 6.86 12.70
HVC-187-16 4.75 6.86 25.40
HVC-187-24 4.75 6.86 38.10
HVC-203-8 5.16 7.37 12.70
HVC-203-16 5.16 7.37 25.40
HVC-218-8 5.54 7.87 12.70
HVC-218-16 5.54 7.87 25.40
HVC-224-8 5.69 7.87 12.70
HVC-224-16 5.69 7.87 25.40
HVC-234-8 5.94 8.13 12.70
HVC-234-16 5.94 8.13 25.40
HVC-250-8 6.35 8.89 12.70
HVC-250-16 6.35 8.89 25.40
HVC-281-8 7.14 9.65 12.70
HVC-281-16 7.14 9.65 25.40
HVC-290-8 7.37 10.16 12.70
HVC-290-16 7.37 10.16 25.40
HVC-304-8 7.72 10.41 12.70
HVC-304-16 7.72 10.41 25.40
HVC-312-8 7.92 10.67 12.70
HVC-312-16 7.92 10.67 25.40
HVC-312-24 7.92 10.92 38.10
HVC-343-8 8.71 11.43 12.70
HVC-343-16 8.71 11.43 25.40
HVC-375-8 9.53 12.70 12.70
HVC-375-16 9.53 12.70 25.40
HVC-406-8 10.31 13.46 12.70
HVC-406-16 10.31 13.46 25.40
HVC-437-8 11.10 14.22 12.70
HVC-437-16 11.10 14.22 25.40
HVC-460-8 11.68 14.73 12.70
HVC-460-16 11.68 14.73 25.40
HVC-467-8 11.86 14.73 12.70
HVC-467-16 11.86 14.73 25.40
HVC-490-8 12.45 15.49 12.70
HVC-490-16 12.45 15.49 25.40
HVC-500-8 12.70 15.75 12.70
HVC-500-16 12.70 15.75 25.40
HVC-531-8 13.49 16.51 12.70
HVC-531-16 13.49 16.51 25.40
HVC-562-8 14.27 17.53 12.70
HVC-562-16 14.27 17.53 25.40
HVC-600-8 15.24 18.54 12.70
HVC-600-16 15.24 18.54 25.40
HVC-625-8 15.88 19.30 12.70
HVC-625-16 15.88 19.30 25.40
HVC-625-24 15.88 19.56 38.10
HVC-640-8 16.26 19.56 12.70
HVC-640-16 16.26 19.56 25.40
HVC-665-8 16.89 20.32 12.70
HVC-665-16 16.89 20.32 25.40
HVC-687-8 17.45 20.57 12.70
HVC-687-16 17.45 20.57 25.40
HVC-690-8 17.53 20.83 12.70
HVC-690-16 17.53 20.83 25.40
HVC-725-8 18.42 21.84 12.70
HVC-725-16 18.42 21.84 25.40
HVC-750-8 19.05 22.35 12.70
HVC-750-16 19.05 22.35 25.40
HVC-812-8 20.62 23.88 12.70
HVC-812-16 20.62 23.88 25.40
HVC-812-24 20.62 24.13 38.10
HVC-843-8 21.41 24.89 12.70
HVC-843-16 21.41 24.89 25.40
HVC-870-8 22.10 25.65 12.70
HVC-870-16 22.10 25.65 25.40
HVC-875-8 22.23 25.91 12.70
HVC-875-16 22.23 25.91 25.40
HVC-875-24 22.23 25.91 38.10
HVC-937-8 23.80 27.43 12.70
HVC-937-16 23.80 27.43 25.40
HVC-985-8 25.02 28.70 12.70
HVC-985-16 25.02 28.70 25.40
HVC-1000-8 25.40 28.96 12.70
HVC-1000-16 25.40 28.96 25.40
HVC-1000-24 25.40 28.96 38.10
HVC-1062-16 26.97 30.48 25.40
HVC-1090-16 27.69 30.99 25.40
HVC-1125-16 28.58 32.26 25.40
HVC-1187-16 30.15 33.78 25.40
HVC-1250-16 31.75 35.31 25.40
HVC-1250-24 31.75 35.31 38.10
HVC-1312-16 33.32 36.83 25.40
HVC-1312-24 33.32 36.83 38.10
HVC-1375-16 34.93 38.61 25.40
HVC-1375-24 34.93 38.61 38.10
HVC-1437-16 36.50 40.13 25.40
HVC-1500-16 38.10 41.66 25.40
HVC-1500-24 38.10 41.66 38.10
HVC-1593-16 40.46 43.69 25.40
HVC-1625-16 41.28 44.96 25.40
HVC-1687-16 42.85 46.48 25.40
HVC-1750-16 44.45 48.01 25.40
HVC-1812-16 46.02 49.53 25.40
HVC-1875-16 47.63 51.31 25.40
HVC-1937-16 49.20 52.58 25.40
HVC-2000-16 50.80 54.36 25.40
HVC-2000-24 50.80 54.36 38.10
HVC-2125-16 53.98 57.66 25.40
HVC-2156-16 54.76 58.42 25.40
HVC-2250-16 57.15 60.96 25.40
HVC-2250-24 57.15 60.96 38.10
HVC-2375-16 60.33 64.01 25.40
HVC-2375-24 60.33 64.01 38.10
HVC-2460-16 62.48 66.29 25.40
HVC-2500-16 63.50 67.31 25.40
HVC-2500-24 63.50 67.31 38.10
HVC-2625-16 66.68 70.36 25.40
HVC-2625-24 66.68 70.36 38.10
HVC-2687-16 68.25 72.14 25.40
HVC-2750-16 69.85 73.91 25.40
HVC-2750-24 69.85 73.91 38.10
HVC-2875-16 73.03 76.96 25.40
HVC-3000-16 76.20 80.26 25.40
HVC-3000-24 76.20 80.26 38.10
HVC-3125-16 79.38 83.44 25.40
HVC-3125-24 79.38 83.44 38.10
HVC-3250-18 82.55 86.61 28.58
HVC-3375-18 85.73 89.79 28.58
HVC-3500-18 88.90 92.96 28.58
HVC-3500-24 88.90 92.96 38.10
HVC-3625-18 92.08 96.14 28.58
HVC-3750-18 95.25 99.31 28.58
HVC-3875-18 98.43 102.49 28.58
HVC-4000-20 101.60 105.66 31.75
HVC-4125-20 104.78 108.84 31.75
HVC-4187-20 106.35 110.41 31.75
HVC-4250-20 107.95 112.01 31.75
HVC-4375-20 111.13 115.19 31.75
HVC-4500-20 114.30 118.36 31.75
HVC-4750-20 120.65 124.71 31.75
HVC-5000-22 127.00 131.57 34.93
HVC-5187-22 131.75 136.32 34.93
HVC-5375-22 136.53 141.10 34.93
HVC-5500-22 139.70 144.27 34.93
HVC-5750-22 146.05 150.62 34.93
HVC-6000-24 152.40 156.97 38.10
HVC-6250-24 158.75 163.32 38.10
HVC-6500-24 165.10 169.67 38.10
HVC-6750-24 171.45 176.02 38.10
HVC-7000-24 177.80 182.37 38.10
HVC-7250-24 184.15 188.72 38.10
HVC-7500-24 190.50 195.07 38.10
HVC-7750-28 196.85 201.42 44.45
HVC-8000-28 203.20 207.77 44.45
HVC-8500-28 215.90 220.47 44.45
HVC-8750-28 222.25 226.82 44.45
HVC-9000-28 228.60 233.68 44.45
HVC-9250-28 234.95 240.03 44.45
HVC-9375-28 238.13 243.21 44.45
HVC-9500-28 241.30 246.38 44.45
HVC-9625-28 244.48 249.56 44.45
HVC-9875-28 250.83 255.91 44.45
HVC-10000-32 254.00 259.08 50.80
HVC-10312-32 261.92 267.00 50.80
HVC-10750-32 273.05 278.13 50.80
HVC-11000-32 279.40 284.48 50.80
HVC-11375-32 288.93 294.01 50.80
HVC-11750-32 298.45 303.53 50.80
HVC-12000-32 304.80 309.88 50.80
HVC-12250-32 311.15 316.23 50.80
HVC-12500-32 317.50 322.58 50.80
HVC-12625-32 320.68 325.76 50.80
HVC-12875-32 327.03 332.11 50.80
HVC-13250-32 336.55 342.14 50.80
HVC-13500-32 342.90 348.49 50.80
HVC-13600-32 345.44 351.03 50.80
HVC-14000-32 355.60 361.19 50.80
HVC-14250-32 361.95 367.54 50.80
HVC-14500-32 368.30 373.89 50.80
HVC-15000-32 381.00 386.59 50.80
HVC-15625-32 396.88 402.46 50.80
HVC-15875-32 403.23 409.32 50.80
HVC-16000-32 406.40 412.50 50.80
HVC-16500-32 419.10 425.20 50.80
HVC-17375-40 441.33 447.42 63.50
HVC-18000-40 457.20 463.30 63.50
HVC-19000-40 482.60 488.70 63.50
HVC-21000-40 533.40 539.50 63.50
