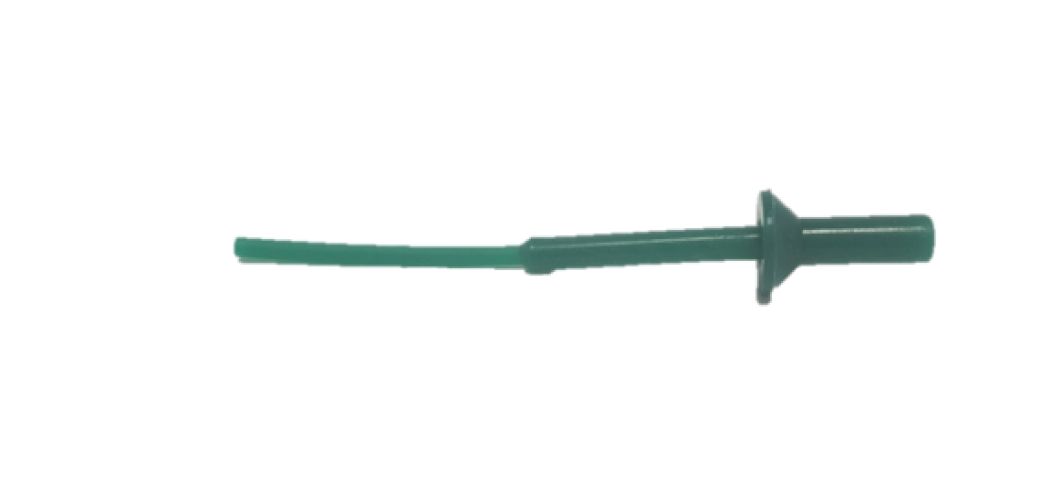

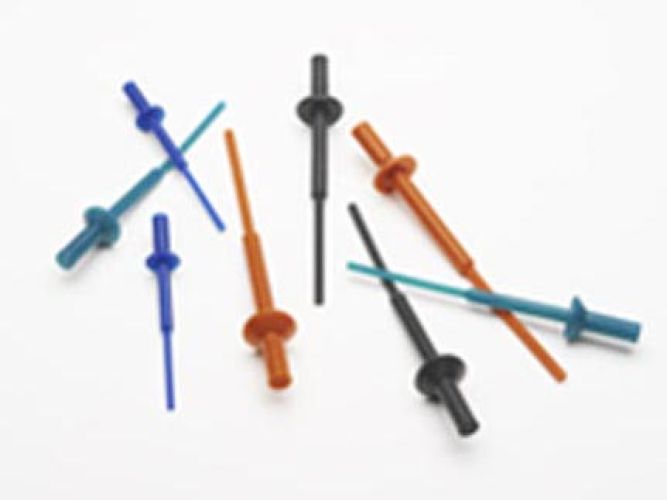

Silicone Washer Pull Plug - Long Series

Our Silicone Pull Plugs Long Series are designed to mask plain and threaded holes; they will mask off the hole and leave a circular grounding or earthing area around the hole. Recommended for powder coating, e-coating, plating & anodising. Available with a UWM washer (washer sold seperately).

For High-temperature processes up to 315°C
Intermittent at 315°C/ Continuous at 232°C
Washer design eliminates the need for two-stage masking
Washer is dual-purpose designed to be used with counter sunk holes to mask off the faces of the countersink
Long series for harder to reach areas (see UWPP Series for standard length)
Reusable

Material: Silicone

Standard Colour: Various (Colour-coded for sizing)

Type: Masking Products, Masking Plugs, Protection & Finishing , Plugs

Material: Silicone

Applications: Masking

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Message

I agree to Greentree's Terms and Conditions* Agreement to this option is required.

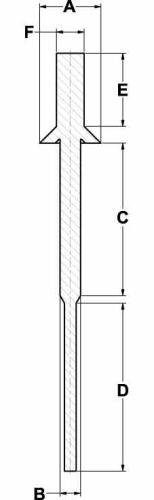

Part Number	Dim A (mm)	Dim B (mm)	Dim C (mm)	Dim D (mm)	Dim E (mm)	Dim F (mm)
UWPP-M4LS	10.01	3.56	22.23	25.40	13.21	4.83
UWPP-500LS	12.70	4.24	28.58	34.93	15.24	5.72
UWPP-562LS	14.27	4.90	38.10	31.75	16.51	5.72
UWPP-M6LS	15.01	5.36	38.10	44.45	15.49	6.35

Part Number

Dim A (mm)

Dim B (mm)

Dim C (mm)

Dim D (mm)

Dim E (mm)

Dim F (mm)

UWPP-M4LS

10.01

3.56

22.23

25.40

13.21

4.83

UWPP-500LS

12.70

4.24

28.58

34.93

15.24

5.72

UWPP-562LS

14.27

4.90

38.10

31.75

16.51

5.72

UWPP-M6LS

15.01

5.36

38.10

44.45

15.49

6.35
