UVCP - Venting Cap PlugsVenting Cap/ Plugs

UVCP - Venting Cap Plugs

Venting Cap/ Plugs

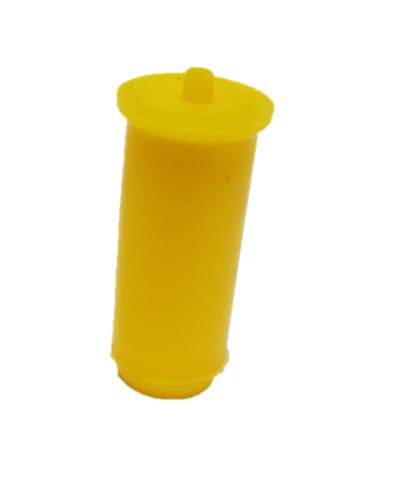

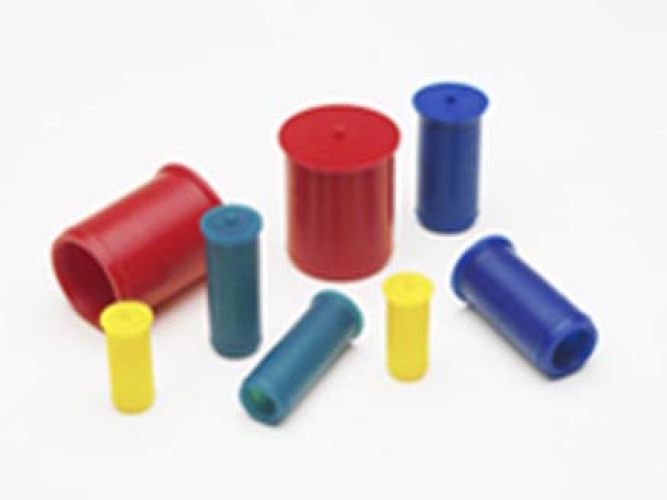

UVCP Series Venting Cap Plugs are designed to mask plain and threaded studs or holes; there is a small nipple on the top of the mask which can easily be punctured or removed to form the small vent. Recommended for powder coating, e-coating, plating & anodising. Recommended temperatures up to 315°C

  • Intermittent at 315°C/ Continuous at 232°C
  • Fits over studs and tube ends
  • Unique vented design eliminates blow off through expansion
  • Oversize flanged head aids masking and removal
  • Reusable

Material: Silicone


Standard Colour: Various (colour-coded for sizing)

Type: Masking Products, Masking Caps, Protection & Finishing , Caps

Material: Silicone

Applications: Masking

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

Let us know who you work for.

A phone number is required if we are going to call you back.

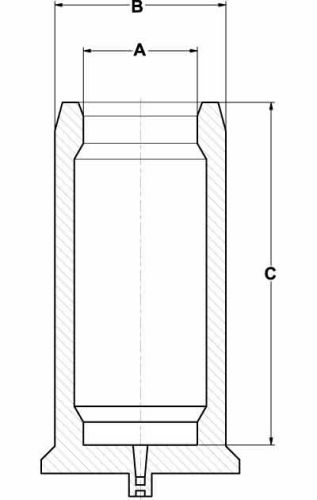

Part Number Dim A (mm) Dim B (mm) Dim C (mm)
UVCP234 5.94 11.43 25.40
UVCP355 9.02 14.35 38.10
UVCP500 12.70 19.05 38.10
UVCP1000 25.40 31.75 38.10
