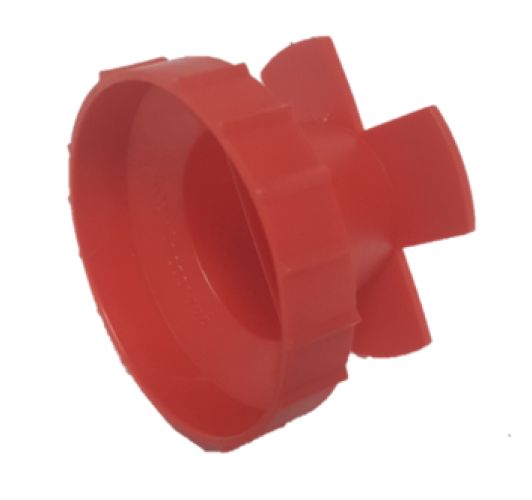

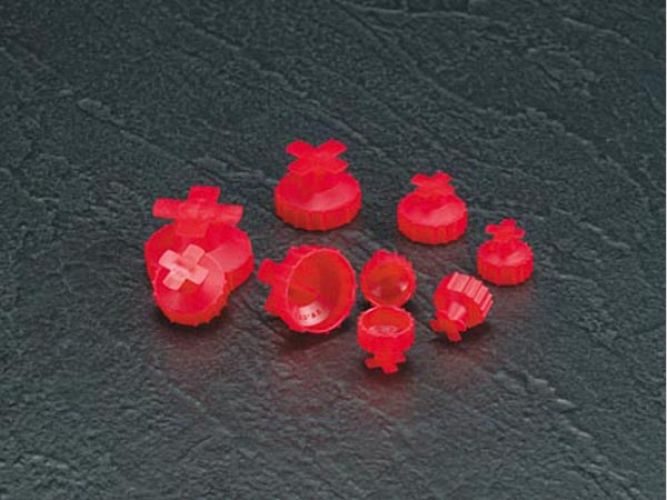

Universal Thread Plugs

The UTP design offers unique flexibility to fit many thread sizes. Easily installed by pushing into a female threaded port. A small turn locks the plug in place.

Covers wide range of thread styles
Easy to install and remove
Also available in high density material

Material: Low-density polyethylene

Standard Colour: Red

Type: Fitting Protection, Protection & Finishing , Plugs

Material: Polyethylene, LDPE

Applications: Hydraulics

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Message

I agree to Greentree's Terms and Conditions* Agreement to this option is required.

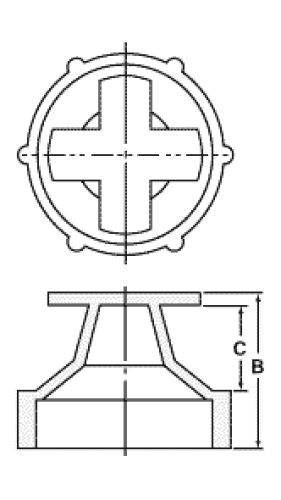

Part Number	Dim B (mm)	Dim C (mm)	To Fit Thread Size
UTP-40	13.46	6.60	1/8in NPT, 7/16in UNF, 1/8in BSP, M10
UTP-50	14.22	7.11	1/2in UNF, 1/4in BSP, M11-12
UTP-60	14.99	7.87	1/4in NPT, 9/16in UNF, M14
UTP-80	17.02	9.91	3/4in UNF, 3/8in BSP, M16-20
UTP-100	18.80	11.68	1in UNF, 1/2in - 5/8in BSP, M22-27
UTP-120	23.11	14.22	1 3/16in UN, 7/8in BSP, M30
UTP-160	24.89	14.22	1 7/16in UN, 7/8in BSP, M36

Part Number

Dim B (mm)

Dim C (mm)

To Fit Thread Size

UTP-40

13.46

6.60

1/8in NPT, 7/16in UNF, 1/8in BSP, M10

UTP-50

14.22

7.11

1/2in UNF, 1/4in BSP, M11-12

UTP-60

14.99

7.87

1/4in NPT, 9/16in UNF, M14

UTP-80

17.02

9.91

3/4in UNF, 3/8in BSP, M16-20

UTP-100

18.80

11.68

1in UNF, 1/2in - 5/8in BSP, M22-27

UTP-120

23.11

14.22

1 3/16in UN, 7/8in BSP, M30

UTP-160

24.89

14.22

1 7/16in UN, 7/8in BSP, M36
