SPT - SPT Series Plugs

Side Pull-Tab Plugs

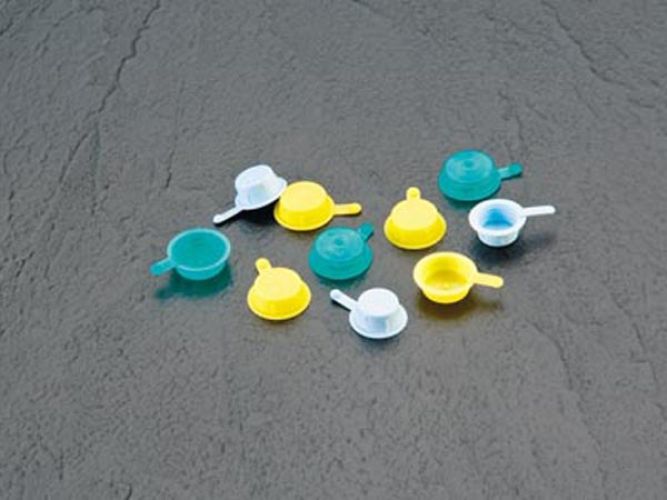

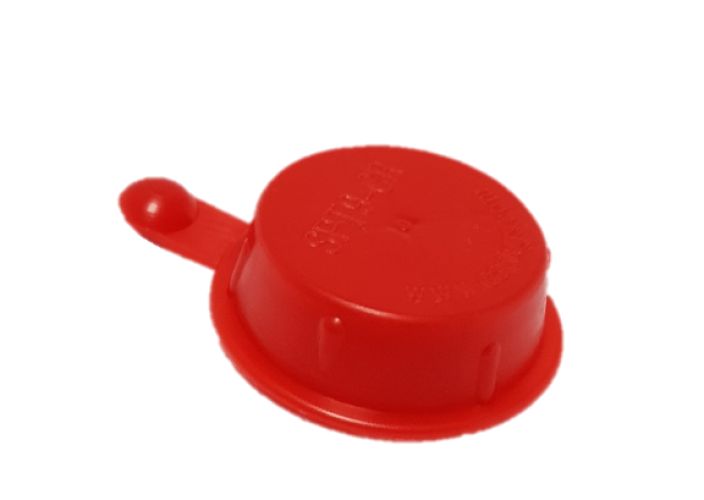

The SPT Series side pull-tab plugs were designed for quick and easy removal. These shallow plugs with small flanges are ideal for plugging open ports in areas with limited space. The pull-tab is moulded with a small bead to enable easy gripping and removal. These plugs are colour coded for your convenience.

  • Pull tab for easy removal
  • Colour coded by size for easy recognition

Material: Low-density polyethylene

Standard Colour: Various

Type: Fitting Protection, Protection & Finishing , Plugs

Material: LDPE, Polyethylene

Applications: Hydraulics

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

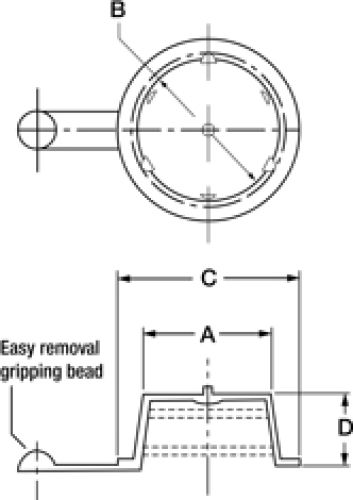

Part Number Dim A (mm) Dim B (mm) Dim C (mm) Dim D (mm) To Fit Thread Size
SPT-6 13.87 16.26 19.81 7.11 3/8-18 NPT
SPT-8 16.18 19.05 21.84 6.10 3/4-18 UN
SPT-9 17.55 20.07 21.84 6.10 1/2-14 NPT
SPT-9CR 17.55 20.07 21.84 6.10 1/2-14 NPT
