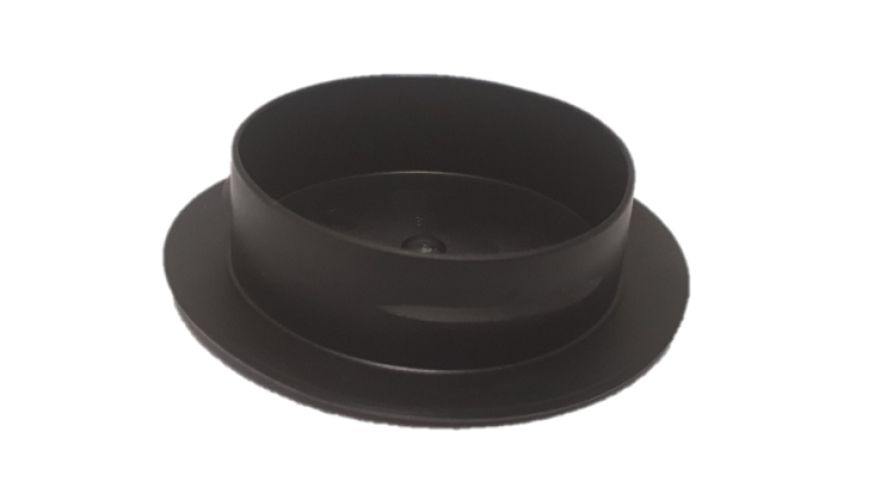

Push-in-Plugs

PIP Series push-in-plugs are designed to fit SAE thread sizes. These parts offer the convenience of a push-in plug with the plugging quality of a threaded plug.

Material: Low-density polyethylene

Standard Colour: Black

Type: Body Sealing, Fitting Protection, Protection & Finishing , Plugs

Material: EVA, LDPE, Polyethylene

Applications: Hydraulics

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Message

I agree to Greentree's Terms and Conditions* Agreement to this option is required.

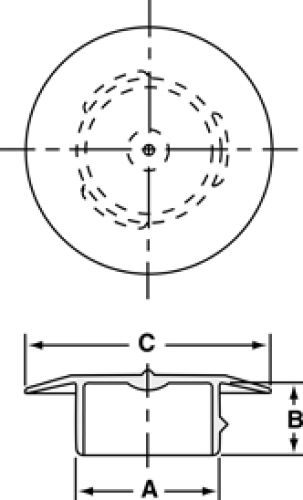

Part Number	Dim A (mm)	Dim B (mm)	Dim C (mm)	To Fit NPT Thread Size (IN)	To Fit SAE Thread Size (IN)
PIP-1 1/4	29.21	8.64	40.64		1 1/4
PIP-1 3/16	27.61	8.64	38.61		1 3/16
PIP-1 5/16	30.78	11.68	41.91		1 5/16
PIP-1 7/16	33.96	11.43	45.72		1 7/16
PIP-11/16	15.49	7.37	24.38		11/16
PIP-13/16	18.67	7.37	27.94		13/16
PIP-1/4	5.23	6.35	10.16		1/4
PIP-5/16	6.43	6.10	13.21		5/16
PIP-3/8	8.05	6.10	14.99	1/8	3/8
PIP-7/16	9.40	6.86	16.26		7/16
PIP-1/2	11.28	6.86	18.29	1/4	1/2
PIP-9/16	12.70	7.37	20.57		9/16
PIP-5/8	14.17	7.37	24.38	3/8	5/8
PIP-3/4	17.30	7.37	24.13		3/4
PIP-7/8	20.24	7.37	29.21		7/8
PIP-1 5/8	38.74	11.68	51.56		1-5/8
PIP-1 7/8	45.09	12.70	57.91		1-7/8
PIP-1	23.32	6.35	33.02	3/4	1
PIP-1 1/16	24.74	6.35	35.56		1-1/16
