HU - HU SERIES

Hammer Union Protection

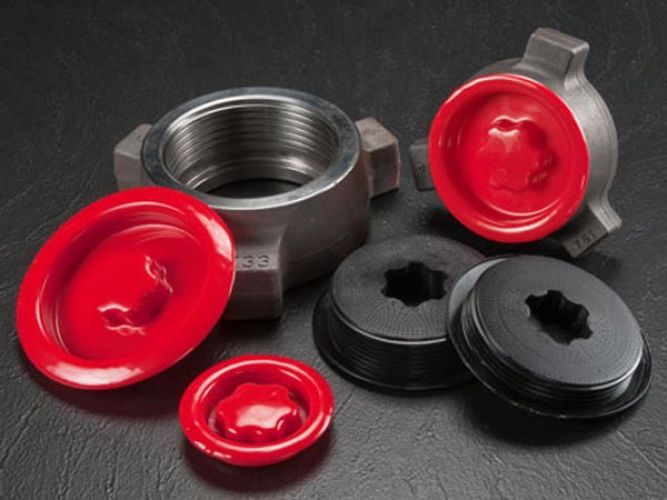

HU series vinyl plugs cover machined threads and sealing surfaces of hammer union joint connections. Includes unique ergonomic handle for easy use. Designed with high durometer vinyl for durability and impact resistance at a lower cost.

  • Colour coded by FIG number
  • Inexpensive
  • Durable

Material: Vinyl

Standard Colour: Colour coded by working pressure


Type: Protection & Finishing , Pipe Caps & Pipe Protection, Plugs, Thread & Flange Protection

Material: LDPE, Vinyl

Applications: Thread and Flange Protection

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Part Number Figure To Fit Nominal Pipe Size Working Pressure
HU-100-2 100 2 1,000
HU-100-2.5 100 2.5 1,000
HU-100-3 100 3 1,000
HU-206-8 200/206/207 8 2,000
HU-400-2 400 2 4,000
HU-400-3 400 3 4,000
HU-206-2 Fig 206-2 2 2,000
HU-206-3 Fig 206-3 3 2,000
HU-206-4 Fig 206-4 4 2,000
HU-206-6 Fig 206-6 6 2,000
HU-602-2 Fig 602-2 2 6,000
HU-602-3 Fig 602-3 3 6,000
HU-602-4 Fig 602-4 4 6,000
HU-1502-1 Fig 1502-1 1 15,000
HU-1502-1 1/2 Fig 1502-1 1/2 1 1/2 15,000
HU-1502-2 Fig 1502-2 2 15,000
HU-1502-3 Fig 1502-3 3 15,000
HU-1502-4 Fig 1502-4 4 15,000
HU-1502-3HD Fig 1502-3 (Heavy Duty) 3 15,000
HU-100-4 Fig 100-4 4 1,000
HU-100-5 Fig 100-5 5 1,000
HU-100-6 Fig 100-6 6 1,000
HU-1003-3 Fig 1003-3 3 10,000
HU-1003-4/5 Fig 1003-4/5 4/5 10,000
HU-1502-5 Fig 1502-5 5 15,000
HU-1502-6 Fig 1502-6 6 15,000
HU-1002-4L FIG 1002 (Long) 4 10,000
HU-1002-4S FIG 1002 (Short) 4 10,000
HU-1002-5 FIG 1002 5 10,000
HU-1002-6 FIG 1002 6 10,000
