GN - Green Neoprene Plugs
The GN series plugs in neoprene are best suited for painting & plating. They offer thermal stability, good physical strength & rigidity. With excellent abrasion resistance they are an ideal choice for anodising and shot blasting processes.
For standard non-carbon free neoprene, please see the BN series.
Material: Neoprene
Standard Colour: Green
For more information or to order samples we'd be pleased to call you back.

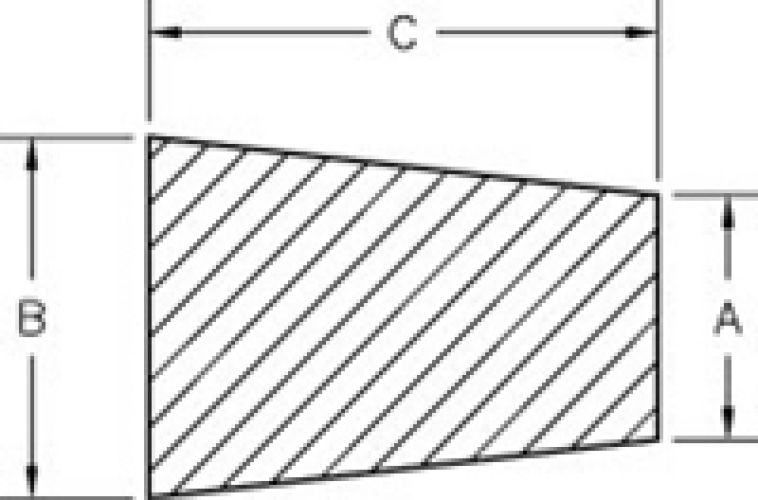

| Part Number | Dim A (mm) | Dim B (mm) | Dim C (mm) |
|---|---|---|---|
| GN99 | 0.79 | 3.18 | 15.88 |
| GN100 | 1.57 | 3.18 | 15.88 |
| GN101 | 1.57 | 4.75 | 15.88 |
| GN102 | 3.18 | 6.35 | 19.05 |
| MPP-GN | 3.18 | 12.70 | 50.80 |
| GN103 | 4.75 | 8.71 | 15.88 |
| GN104 | 6.35 | 9.53 | 19.05 |
| GN109 | 12.70 | 16.66 | 25.40 |
| GN105 | 6.35 | 9.53 | 12.70 |
| GN106 | 8.71 | 11.10 | 17.45 |
| GN000 | 8.71 | 12.70 | 20.62 |
| GN107 | 9.53 | 14.27 | 25.40 |
| GN00 | 10.31 | 15.06 | 25.40 |
| GN108 | 11.10 | 15.88 | 20.62 |
| GN110 | 14.27 | 19.05 | 25.40 |
| GN111 | 15.88 | 19.84 | 25.40 |
| GN112 | 18.24 | 23.80 | 25.40 |
| GN114 | 19.05 | 25.40 | 25.40 |
| GN116 | 23.01 | 27.00 | 25.40 |
| GN118 | 26.19 | 31.75 | 25.40 |
| GN120 | 30.18 | 36.53 | 25.40 |
| GN122 | 33.35 | 41.28 | 25.40 |
| GN124 | 37.31 | 44.45 | 25.40 |
| GN126 | 41.28 | 50.01 | 25.40 |
| GN128 | 47.63 | 55.96 | 25.40 |
| GN129 | 50.80 | 62.71 | 25.40 |
| GN130 | 53.98 | 63.50 | 25.40 |
| GN132 | 57.94 | 68.28 | 25.40 |
| GN133 | 61.93 | 75.01 | 37.31 |
| GN134 | 76.20 | 88.90 | 38.10 |
| GN136 | 82.55 | 101.60 | 38.10 |
| GN138 | 88.90 | 127.00 | 50.80 |
