FFP - FFP SERIES FLANGE

FFP Series-Flange

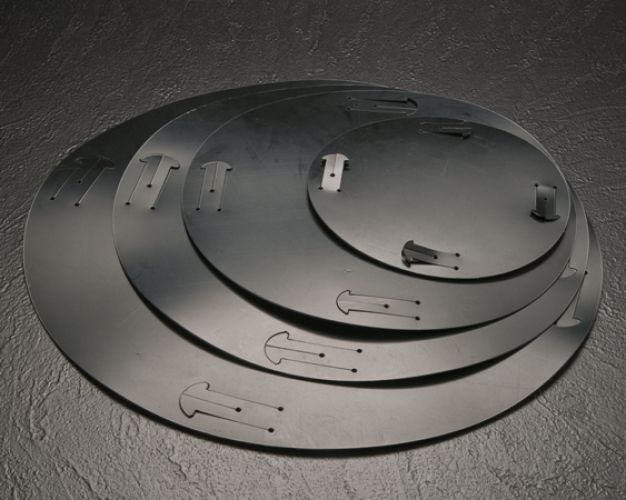

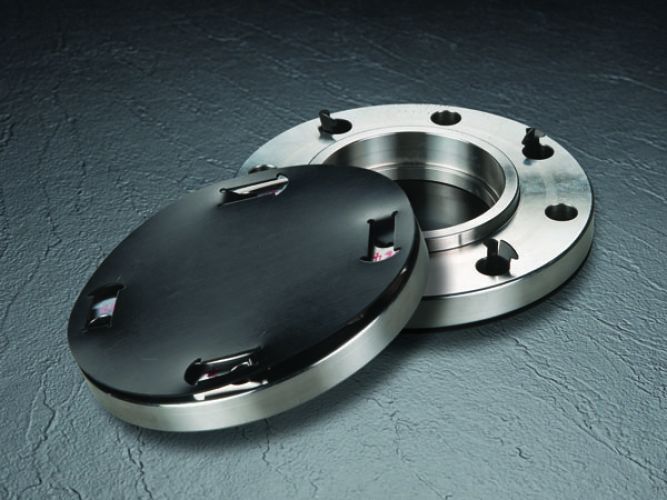

FFP series finger-lock flange covers feature a die-cut configuration with locking bolt hole tabs to keep protector in place without adhesive or separate fasteners.

  • Cam make any size up to 60”
  • Available in ANSI B-16.5 or 16.47

Material: Low-density polyethylene

Standard Colour: Black


Type: Protection & Finishing , Thread & Flange Protection

Material: LDPE, Polyethylene

Applications: Thread and Flange Protection

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Part Number Dim A (mm) Dim B (mm) To Fit Nominal Pipe Size
FFP-150-1 107.95 79.25 1
FFP-150-2 152.40 120.65 2
FFP-300-6 317.50 269.75 6
FFP-600-4 273.05 215.90 4
FFP-900-6 381.00 317.50 6
FFP-1500-6 393.70 317.50 6
FFP-2500-2 234.95 171.45 2
