EZP - EZP Series

NPT Plugs

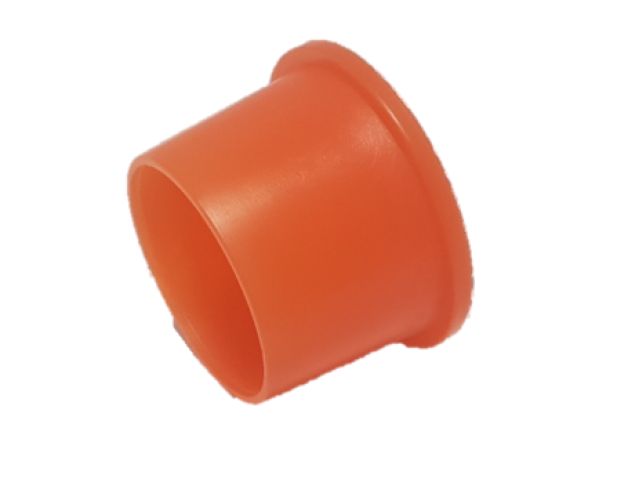

Designed to plug NPT fittings, the EZP series plugs can also be used to protect a variety of items. A heavy-duty, tapered, multi-use cap with a flange for easy insertion and removal.

  • NPT Tapered Design
  • Flange for easy installation and removal

Material: LDPE

Standard Colour: Orange


Type: Fitting Protection, Protection & Finishing , Plugs

Material: LDPE, Polyethylene

Applications: Hydraulics

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

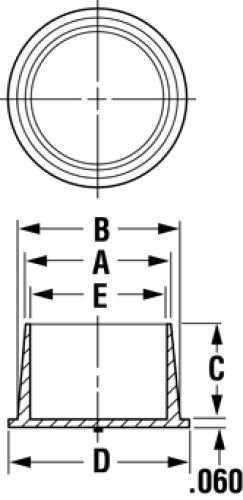

Part Number Dim A (mm) Dim B (mm) Dim C (mm) Dim D (mm) Dim E (mm) To Fit NPT Thread Size (IN)
EZP-151 8.41 10.08 7.11 13.21 6.86 1/8
EZP-152 10.72 12.34 7.37 15.49 9.14 1/4
EZP-153 13.97 16.26 12.70 19.56 12.45 3/8
EZP-154 17.55 19.99 12.70 23.11 15.75 1/2
EZP-155 22.10 24.74 15.75 27.69 20.32 3/4
EZP-156 27.76 30.96 16.76 34.04 25.91 1
EZP-157 36.83 40.26 19.05 43.69 34.80 1-1/4
EZP-162 44.25 46.28 19.05 51.56 42.16 1-1/2
EZP-163 56.69 57.45 21.84 62.74 54.61 2
