EPN310 - EPN-310 Series

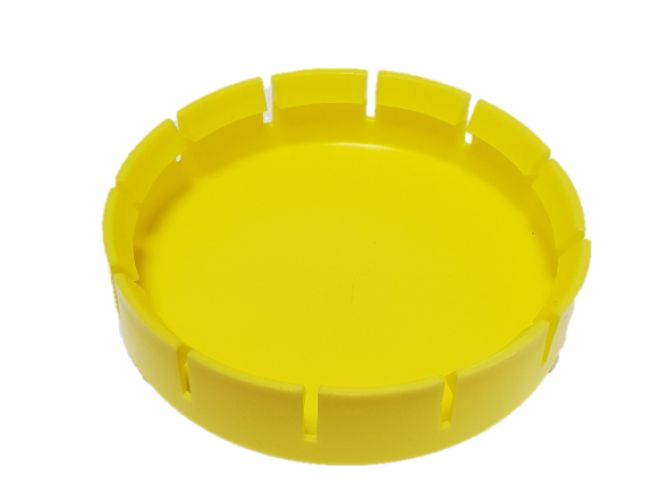

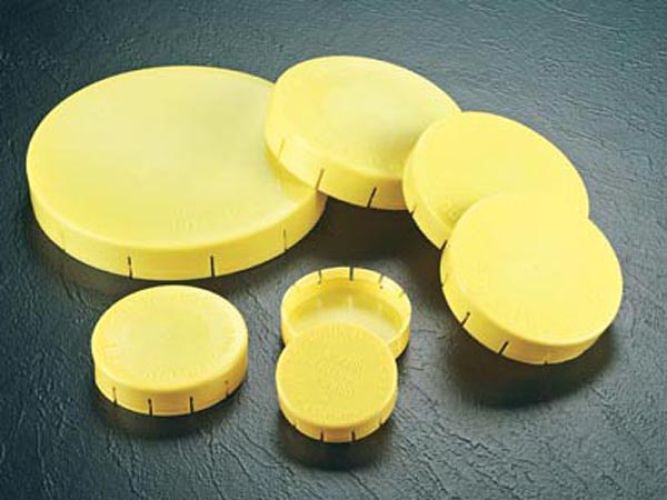

Outside Fitting Protectors

Pushes on to cover the entire flange and protect the face and sides. Ideal for coated and conical bore flanges.

  • Covers full face of the flange
  • Bright yellow for easy recognition
  • ANSI B 16.5

Material: Linear low-density polyethylene

Standard Colour: Yellow


Type: Protection & Finishing , Plugs, Thread & Flange Protection

Material: LDPE, Polyethylene

Applications: Thread and Flange Protection

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

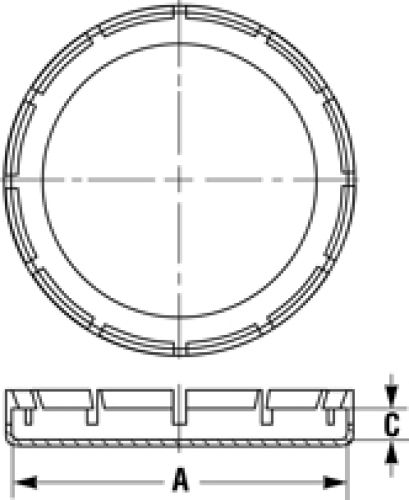

Part Number Dim A (mm) Dim C (mm) To Cover Flange Dash Size (IN)
EPN-310-0500A 88.90 14.22 150-1/2
EPN-310-0750A 98.55 17.02 150-3/4
EPN-310-1A 107.95 17.53 150-1
EPN-310-1500A 127.00 20.57 150-1-1/2
EPN-310-2A 152.40 22.10 150-2
EPN-310-3A 190.50 26.92 150-3
EPN-310-4A 228.60 27.94 150-4
EPN-310-6A 279.40 28.96 150-6
EPN-310-10A 406.40 29.97 150-10
EPN-310-0500B 95.00 14.22 300-1/2
EPN-310-1B 123.95 20.57 300-1
EPN-310-2B 165.10 21.08 300-2
EPN-310-0500C 95.00 17.02 600-1/2
EPN-310-1C 123.95 20.57 600-1
