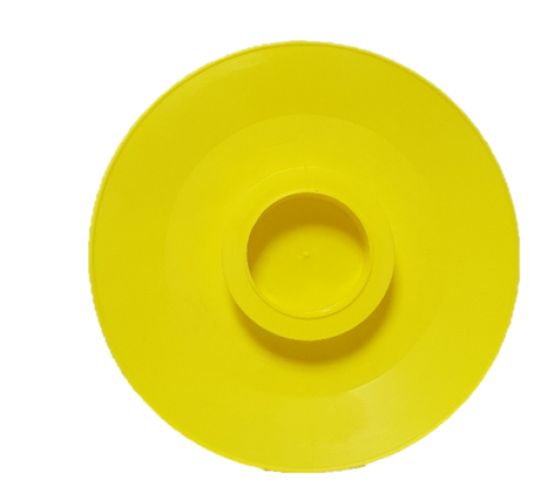

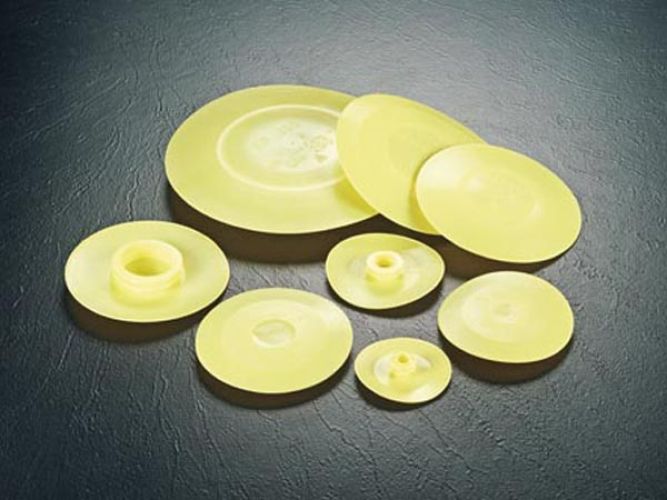

EPN305 - EP-305 Series

Push-In Flange Protectors

The EPN 305 universal design allows for use on a variety of flanges and classifications.

  • Covers full face of the flange
  • Bright yellow for easy recognition
  • ANSI B 16.5
  • DIN 2627-2638

Material: Linear low-density polyethylene

Standard Colour: Yellow


Type: Protection & Finishing , Plugs, Thread & Flange Protection

Material: LDPE, Polyethylene

Applications: Thread and Flange Protection

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

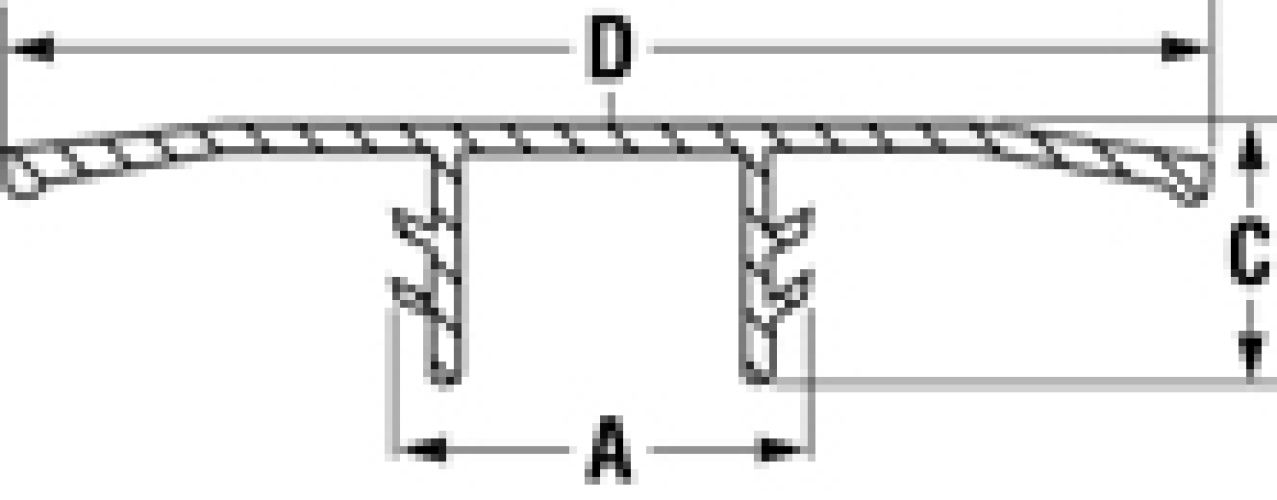

Part Number Dim A (mm) Dim C (mm) Dim D (mm) To Fit Nominal Pipe Size
EPN-305-0375 13.97 14.99 86.11 3/8
EPN-305-0500 19.05 14.99 89.92 1/2
EPN-305-0750 23.88 14.99 100.08 3/4
EPN-305-1 29.97 20.07 109.98 1
EPN-305-1250 39.12 20.07 135.89 1-1/4
EPN-305-1500 44.96 20.07 146.05 1-1/2
EPN-305-2 55.88 20.07 160.02 2
EPN-305-2500 71.88 20.07 180.09 2-1/2
EPN-305-3 85.09 24.89 196.09 3
EPN-305-4 108.97 24.89 215.90 4
EPN-305-5 134.11 24.89 246.13 5
EPN-305-6 161.04 35.05 279.91 6
EPN-305-8 210.06 35.05 336.04 8
EPN-305-10 261.87 39.88 389.89 10
EPN-305-12 318.01 48.01 450.09 12
EPN-305-16 409.96 61.98 579.88 16
Convert to Imperial
