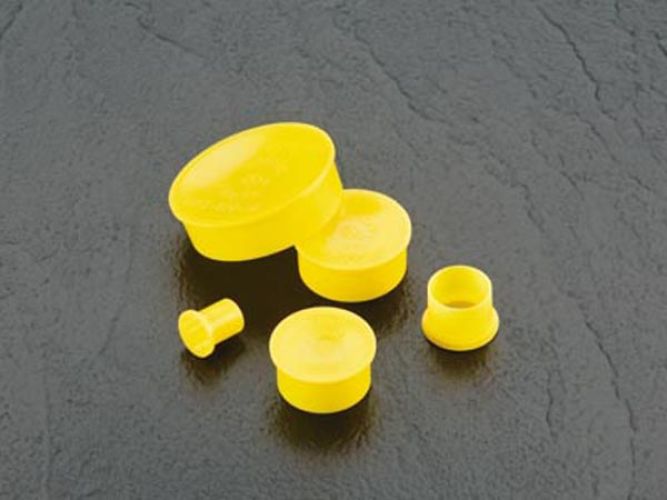

Utility Plugs

The E series utility plugs are straight-sided, thin-walled closures designed to protect threaded connectors. The flanged end makes for easy removal in hard-to-reach areas. The versatile design of these plugs make them ideal for use in a variety of threaded and non-threaded applications.

Material: Low-Density Polyethylene
Standard Colour: Yellow

For other material & colour options contact customer services.

Type: Protection & Finishing , Electronic Connectors, Plugs

Material: Polyethylene, LDPE

Applications: Hydraulics

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Message

I agree to Greentree's Terms and Conditions* Agreement to this option is required.

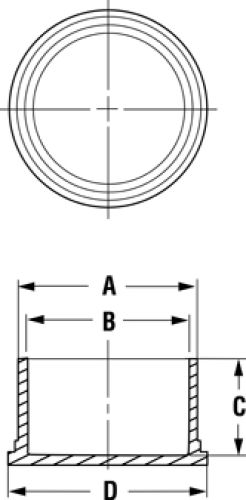

Part Number	Dim A (mm)	Dim B (mm)	Dim C (mm)	Dim D (mm)	To Fit Thread Size
E-2	12.34	10.82	16.00	16.76	1/2
E-6	15.42	13.89	16.00	19.05	5/8
E-10	18.39	16.87	16.00	21.34	3/4
E-12	21.59	20.07	16.00	25.40	7/8
E-14	24.82	23.29	16.00	29.46	1
E-16	27.89	26.37	16.00	31.75	1-1/8
E-18	31.06	29.54	16.00	35.05	1-1/4
E-20	34.26	32.74	16.00	38.10	1-3/8
E-22	37.44	35.92	16.00	41.15	1-1/2
E-24	43.84	42.32	16.00	47.75	1-3/4
E-26	50.22	48.69	16.00	53.09	2
E-28	56.31	54.79	16.00	60.45	2-1/4
E-30	61.42	59.89	16.00	66.55	2-1/2
