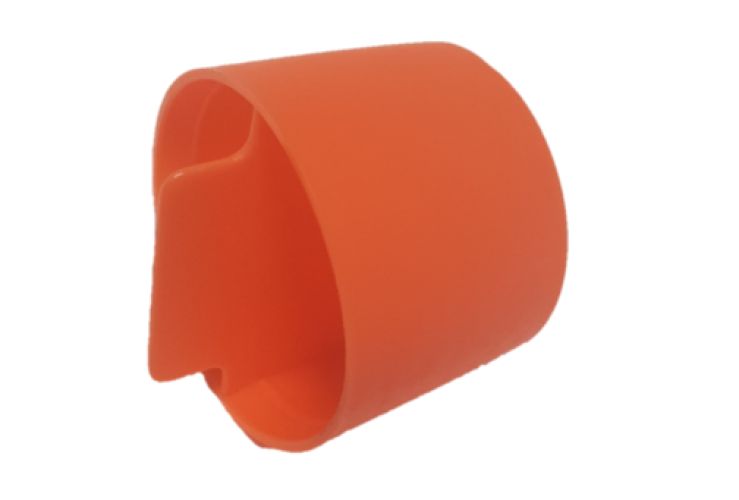

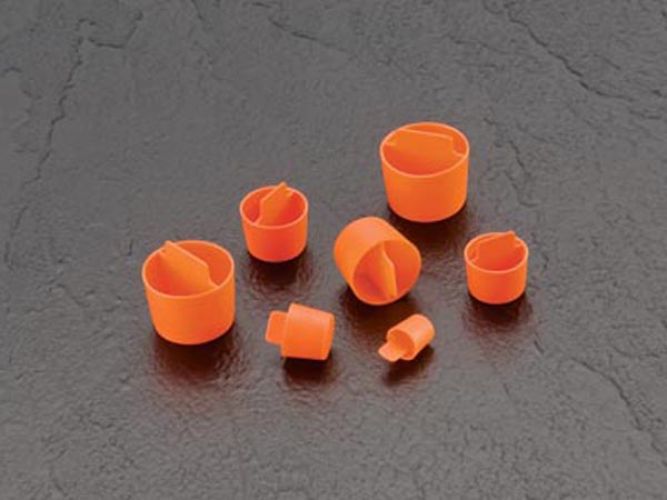

CPT-NF - CPT-NF Series Plugs

Centre Pull-Tab Tapered Plugs without Flange

The CPT-NF series is Ideal for use in tight places or when two or more openings need to be plugged close together, where there is no room for a flange.

  • Follows standard taper design
  • Flangeless
  • Easy to install and remove using tab feature

Material: Low-Density Polyethylene

Standard Colour: Orange


Type: Fitting Protection, Protection & Finishing , Plugs

Material: LDPE, Polyethylene

Applications: Automotive

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

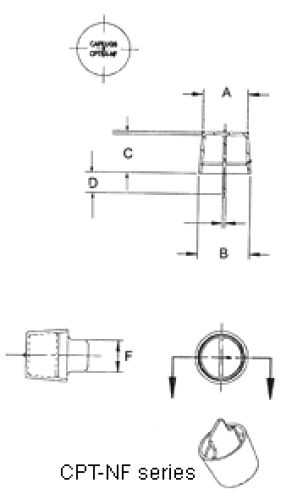

Part Number Dim A (mm) Dim B (mm) Dim C (mm) Dim D (mm) Dim E (mm)
CPT-3NF 9.19 11.02 10.41 8.64 6.35
CPT-5XNF 12.70 14.55 11.94 8.64 9.65
CPT-6XNF 14.00 16.23 12.70 6.35 9.65
CPT-8XNF 17.22 19.30 13.46 6.35 12.70
CPT-9XNF 18.47 21.11 14.99 6.35 12.70
CPT-11NF 20.40 23.32 19.81 6.35 19.05
CPT-13NF 24.56 27.86 19.81 6.35 19.05
Convert to Imperial
