CXT - Center Cross Pull-Tab PlugCenter Cross Pull-Tab Plug

CXT - Center Cross Pull-Tab Plug

Center Cross Pull-Tab Plug

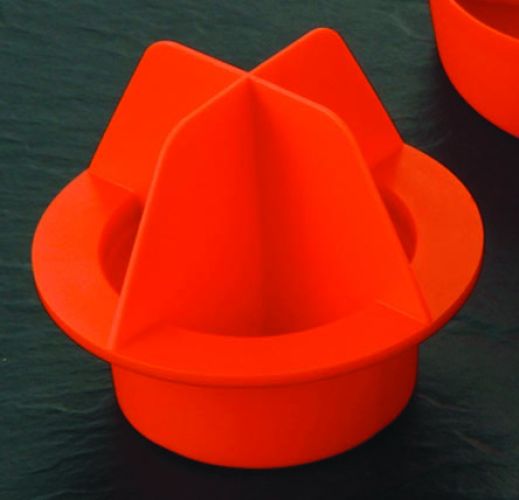

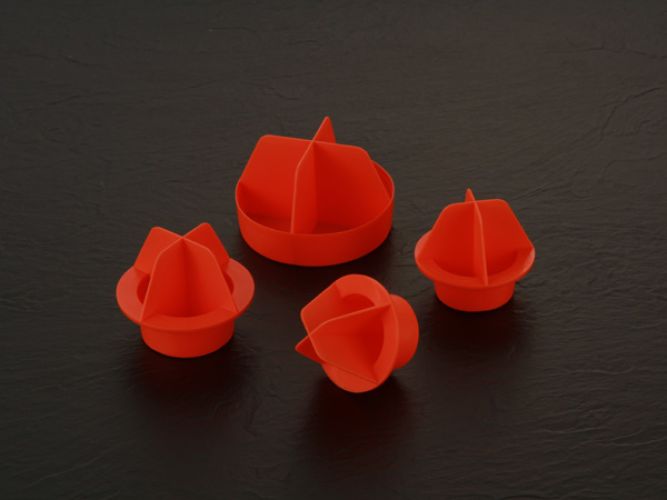

The CXT series tapered plugs have the same configuration and dimensions of standard tapered plugs but with an integral cross-design pull tab which facilitates insertion and removal of the plug. The tab extends well above the plug body, making it easy to grasp. Since the tab is molded fully into the end and side walls of the plug, it will not break off during plug removal. Additionally, the cross tabs and wide flange design prevent final connections being made without first removing the plug.

Material: Low-Density Polyethylene

Colour: Orange


Type: Fitting Protection, Protection & Finishing , Plugs

Material: LDPE, Polyethylene

Applications: Automotive

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Part Number Dim A (mm) Dim B (mm) Dim C (mm) Dim D (mm) Dim E (mm)
CXT-21 30.53 32.94 47.75 25.40 19.05
CXT-23 33.32 37.21 50.80 25.40 16.76
CXT-26 38.58 40.69 57.15 25.40 19.05
CXT-44F 67.01 70.08 79.25 25.40 17.53
