Silicone Washer Pull Plugs

Our Silicone Pull Plugs are designed to mask plain and threaded holes; they will mask off the hole and leave a circular grounding or earthing area around the hole. Recommended for powder coating, e-coating, plating & anodising. Available with a UWM washer (washer sold seperately).

For High-temperature processes up to 315°C
Washer design eliminates the need for two-stage masking
Washer is dual-pupose designed to be used with counter sunk holes to mask off the faces of the countersink
Long series available for harder to reach areas (see UWPP-LS Series)
Reusable

Material: Silicone

Standard Colour: Various (Colour-coded for sizing)

Type: Masking Products, Masking Plugs, Masking Speciality, Protection & Finishing , Plugs

Material: Silicone

Applications: Masking

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Message

I agree to Greentree's Terms and Conditions* Agreement to this option is required.

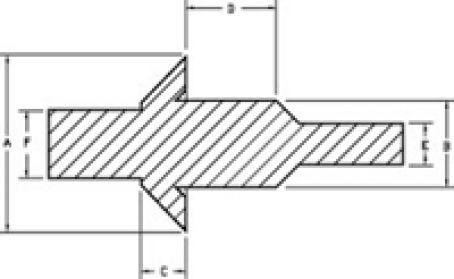

Part Number	Dim A (mm)	Dim B (mm)	Dim C (mm)	Dim D (mm)	Dim E (mm)	Dim F (mm)
UWPP-M3	10.01	2.67	2.72	9.91	1.52	2.29
UWPP-M4	10.01	3.56	2.72	9.91	2.03	3.05
UWPP-M4LS	10.01	3.56	2.72	22.23	2.01	4.83
UWPP-500LS	12.70	4.22	2.72	28.58	2.39	5.72
UWPP-500	12.70	4.24	2.72	9.91	2.41	3.56
UWPP-M5	10.01	4.47	2.72	9.91	2.54	3.81
UWPP-562LS	14.27	4.88	2.72	38.10	2.77	5.72
UWPP-562	14.27	4.90	2.72	9.91	2.79	4.06
UWPP-M6	15.01	5.36	4.19	9.91	3.05	4.57
UWPP-M6LS	14.99	5.36	4.17	38.10	3.05	6.35
UWPP-625	15.88	5.72	2.72	9.91	3.25	4.83
UWPP-M8	15.01	7.19	4.19	9.91	4.09	6.10
UWPP-688	17.48	7.21	4.19	9.91	4.11	6.10
UWPP-812	20.62	8.69	4.19	9.91	4.95	7.37
UWPP-M10	19.99	9.53	5.33	9.91	5.44	8.13
UWPP-922	23.42	10.16	5.33	9.91	5.79	8.64
UWPP-M12	19.99	10.87	5.33	9.91	6.20	9.14
UWPP-1060	26.92	11.66	5.33	9.91	6.65	9.91

Part Number

Dim A (mm)

Dim B (mm)

Dim C (mm)

Dim D (mm)

Dim E (mm)

Dim F (mm)

UWPP-M3

10.01

2.67

2.72

9.91

1.52

2.29

UWPP-M4

10.01

3.56

2.72

9.91

2.03

3.05

UWPP-M4LS

10.01

3.56

2.72

22.23

2.01

4.83

UWPP-500LS

12.70

4.22

2.72

28.58

2.39

5.72

UWPP-500

12.70

4.24

2.72

9.91

2.41

3.56

UWPP-M5

10.01

4.47

2.72

9.91

2.54

3.81

UWPP-562LS

14.27

4.88

2.72

38.10

2.77

5.72

UWPP-562

14.27

4.90

2.72

9.91

2.79

4.06

UWPP-M6

15.01

5.36

4.19

9.91

3.05

4.57

UWPP-M6LS

14.99

5.36

4.17

38.10

3.05

6.35

UWPP-625

15.88

5.72

2.72

9.91

3.25

4.83

UWPP-M8

15.01

7.19

4.19

9.91

4.09

6.10

UWPP-688

17.48

7.21

4.19

9.91

4.11

6.10

UWPP-812

20.62

8.69

4.19

9.91

4.95

7.37

UWPP-M10

19.99

9.53

5.33

9.91

5.44

8.13

UWPP-922

23.42

10.16

5.33

9.91

5.79

8.64

UWPP-M12

19.99

10.87

5.33

9.91

6.20

9.14

UWPP-1060

26.92

11.66

5.33

9.91

6.65

9.91
