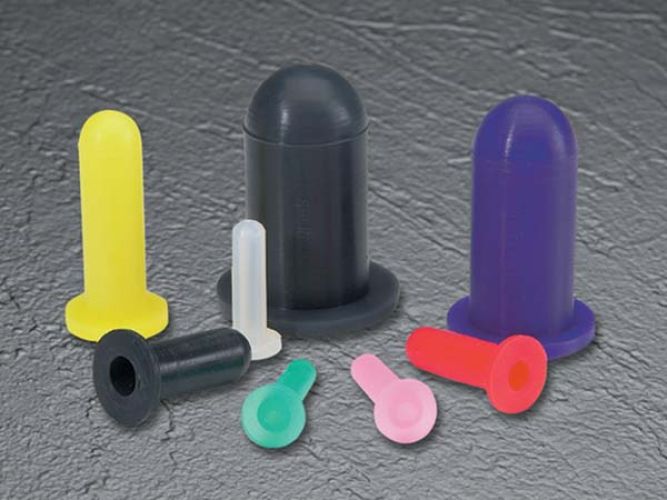

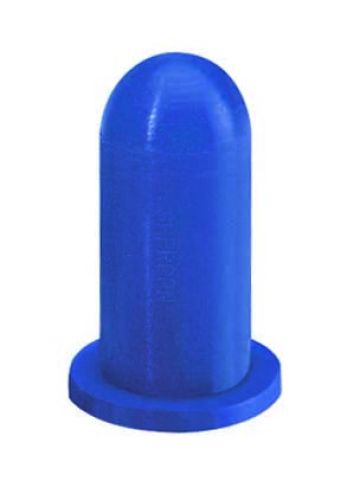

Washer Caps

Our Washer Caps provide a concentric mask around a stud or hole paint free earthing area.

Recommended for powder coating, e-coating, plating and anodising.
Temperatures up to 315°C
Can be used as a cap or a plug
Washer design eliminates the need for two-stage masking

Material: Silicone

Standard Colour: Various (colour-coded for sizing)

Type: Masking Products, Masking Caps, Masking Plugs, Protection & Finishing , Caps, Plugs

Material: Silicone

Applications: Masking

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Message

I agree to Greentree's Terms and Conditions* Agreement to this option is required.

Part Number	Cap Metric Thread Size	Dim A (mm)	Dim B (mm)	Dim C (mm)	Dim D (mm)
WC027-012	M3	11.99	2.69	6.20	25.40
WC125-0500		12.70	3.18	6.60	25.40
WC037-012	M4	11.99	3.71	6.71	25.40
WC156-0500		12.70	3.96	8.13	25.40
WC172-0500		12.70	4.37	9.78	25.40
WC046-015	M5	15.01	4.60	8.20	25.40
WC056-015	M6	15.01	5.59	8.71	25.40
WC075-018	M8	18.01	7.49	10.69	25.40
WC095-018	M10	20.83	9.50	12.70	38.10
WC115-025	M12	24.99	11.51	16.69	38.10
WC155-031	M16	30.99	15.49	20.70	38.10
WC195-038	M20	38.00	19.51	24.69	38.10

Part Number

Cap Metric Thread Size

Dim A (mm)

Dim B (mm)

Dim C (mm)

Dim D (mm)

WC027-012

11.99

2.69

6.20

25.40

WC125-0500

12.70

3.18

6.60

25.40

WC037-012

11.99

3.71

6.71

25.40

WC156-0500

12.70

3.96

8.13

25.40

WC172-0500

12.70

4.37

9.78

25.40

WC046-015

15.01

4.60

8.20

25.40

WC056-015

15.01

5.59

8.71

25.40

WC075-018

18.01

7.49

10.69

25.40

WC095-018

M10

20.83

9.50

12.70

38.10

WC115-025

M12

24.99

11.51

16.69

38.10

WC155-031

M16

30.99

15.49

20.70

38.10

WC195-038

M20

38.00

19.51

24.69

38.10
