W - W Series Tapers

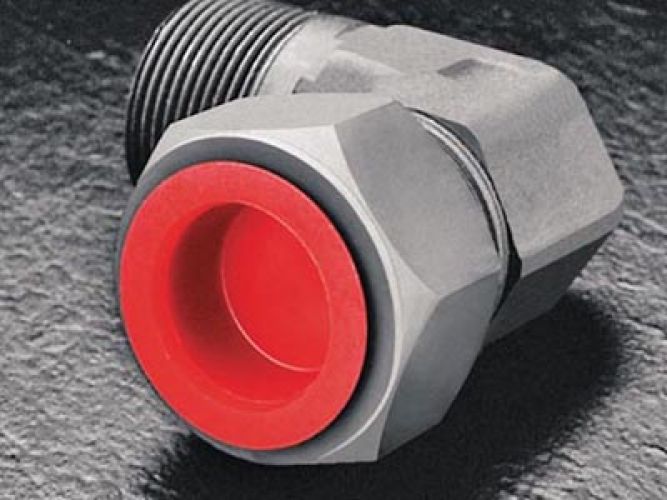

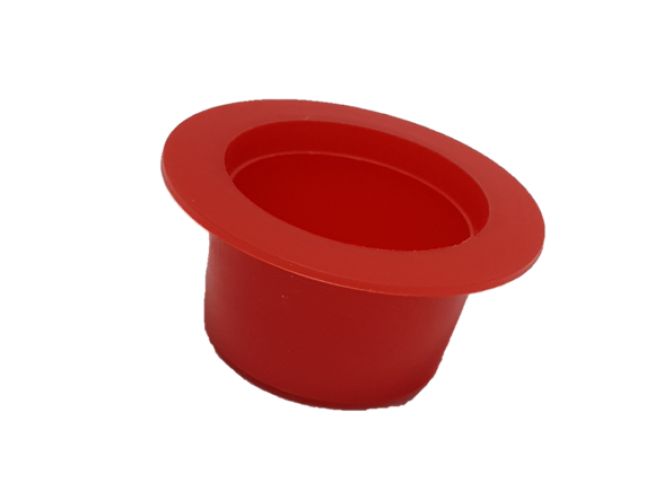

Featuring a wider flange than standard tapered caps, the W Series offers added protection for bearing surfaces and cannot be accidentally pushed all the way into or through an opening when used as a plug.
Material: Low-density polyethylene
Standard Colour: Red
For more information or to order samples we'd be pleased to call you back.

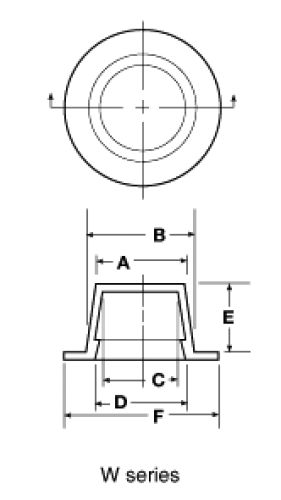

| Part Number | Dim A (mm) | Dim B (mm) | Dim C (mm) | Dim D (mm) | Dim E (mm) | Dim F (mm) |
|---|---|---|---|---|---|---|
| W-0 | 4.39 | 6.10 | 2.82 | 4.50 | 9.65 | 14.22 |
| W-1 | 6.10 | 8.00 | 4.65 | 6.22 | 9.14 | 15.75 |
| W-2 | 7.67 | 9.53 | 6.10 | 7.70 | 9.65 | 17.53 |
| W-3 | 9.14 | 10.80 | 7.57 | 9.22 | 9.65 | 19.05 |
| W-4 | 10.80 | 12.19 | 9.22 | 10.62 | 9.65 | 20.57 |
| W-5 | 11.99 | 13.72 | 10.41 | 12.14 | 11.18 | 22.35 |
| W-6 | 13.61 | 15.62 | 12.04 | 14.05 | 11.18 | 23.88 |
| W-7 | 14.99 | 17.02 | 13.41 | 15.44 | 12.70 | 25.40 |
| W-8 | 16.33 | 18.44 | 14.76 | 16.81 | 12.70 | 26.16 |
| W-9 | 17.35 | 19.94 | 15.77 | 18.36 | 13.46 | 28.70 |
| W-10 | 19.43 | 21.97 | 17.86 | 20.40 | 14.22 | 30.23 |
| W-11 | 20.83 | 23.62 | 19.25 | 22.05 | 14.99 | 31.75 |
| W-12 | 22.15 | 24.82 | 20.57 | 23.27 | 14.99 | 33.27 |
| W-13 | 24.77 | 28.04 | 23.19 | 26.47 | 18.29 | 36.58 |
| W-14 | 29.41 | 32.39 | 27.84 | 30.81 | 18.29 | 39.62 |
| W-14X | 29.85 | 32.61 | 28.45 | 31.22 | 16.00 | 42.42 |
| W-15 | 31.70 | 34.93 | 30.00 | 33.35 | 18.29 | 42.93 |
| W-16 | 33.32 | 37.47 | 31.75 | 35.89 | 22.35 | 45.97 |
| W-16X | 38.53 | 40.64 | 36.37 | 38.46 | 1.24 | 57.40 |
| W-17 | 36.96 | 41.02 | 35.38 | 39.45 | 18.29 | 49.28 |
| W-18 | 40.01 | 42.80 | 38.43 | 41.22 | 17.53 | 50.80 |
| W-19 | 44.07 | 48.26 | 42.49 | 46.69 | 18.29 | 56.39 |
| W-20 | 45.97 | 49.53 | 44.40 | 47.96 | 17.53 | 58.67 |
| W-21 | 49.40 | 53.34 | 47.83 | 51.77 | 17.53 | 61.98 |
