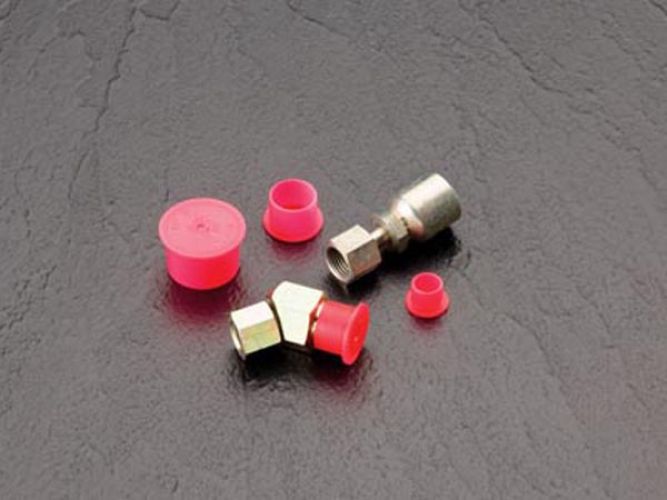

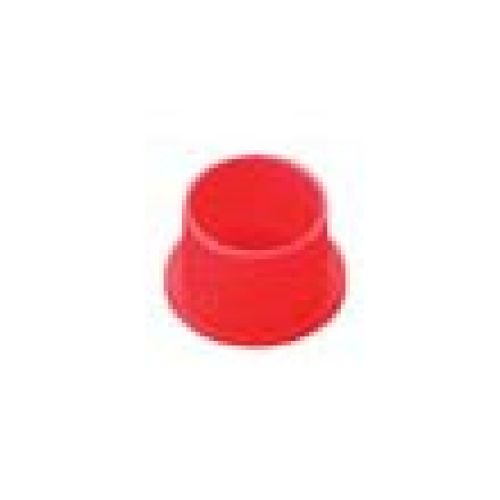

Push-On NPT Caps

The PN Series push-on caps are engineered to protect NPT fittings, yet versatile to be used on a variety of threaded or non-threaded fittings. Flanged top ensures quick and easy removal.

For NPT fittings
Threaded or non-threaded
Flanged for easy installation and removal

Material: Low-density polyethylene

Standard Colour: Red Tint
Optional Colour: Natural

Type: Fitting Protection, Protection & Finishing , Caps

Material: Polyethylene, LDPE

Applications: Hydraulics

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Message

I agree to Greentree's Terms and Conditions* Agreement to this option is required.

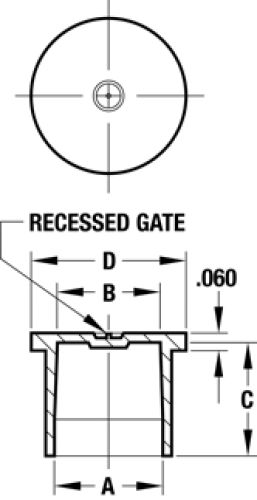

Part Number	Dim A (mm)	Dim B (mm)	Dim C (mm)	Dim D (mm)	To Fit NPT Thread Size (IN)
PN-2	10.13	9.73	9.65	16.76	1/8
PN-4	13.54	12.90	13.46	20.57	1/4
PN-6	16.99	16.36	13.46	23.88	3/8
PN-8	21.16	20.32	18.29	27.69	1/2
PN-12	26.54	25.68	19.05	33.27	3/4
PN-16	33.27	32.18	23.62	39.62	1
PN-20	42.04	40.92	24.64	49.28	1-1/4
PN-24	48.08	46.94	24.64	54.86	1-1/2
PN-32	60.20	59.00	26.16	66.55	2

Part Number

Dim A (mm)

Dim B (mm)

Dim C (mm)

Dim D (mm)

To Fit NPT Thread Size (IN)

PN-2

10.13

9.73

9.65

16.76

1/8

PN-4

13.54

12.90

13.46

20.57

1/4

PN-6

16.99

16.36

13.46

23.88

3/8

PN-8

21.16

20.32

18.29

27.69

1/2

PN-12

26.54

25.68

19.05

33.27

3/4

PN-16

33.27

32.18

23.62

39.62

PN-20

42.04

40.92

24.64

49.28

1-1/4

PN-24

48.08

46.94

24.64

54.86

1-1/2

PN-32

60.20

59.00

26.16

66.55
