Push-On, Straight-Thread Caps

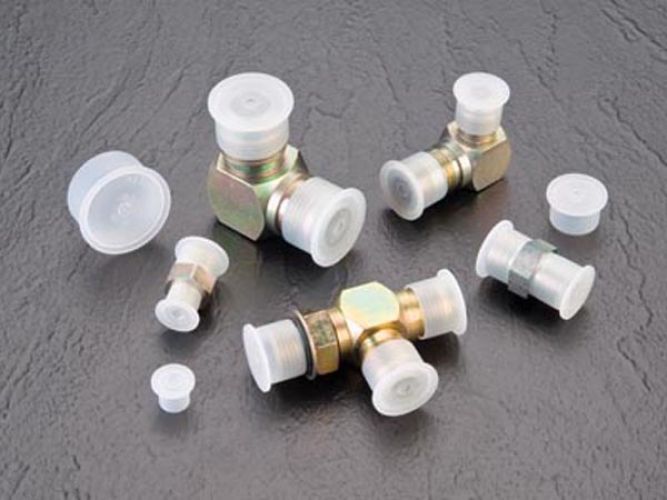

The PO Series caps are designed to protect straight threads with or without O-rings, yet versatile to be used on a variety of threaded or non-threaded fittings.

Protects straight threads
Versatile design
Covers a range of threads

Material: Low-density polyethylene

Standard Colour: Natural

Type: Fitting Protection, Protection & Finishing , Caps

Material: Polyethylene, LDPE

Applications: Hydraulics

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Message

I agree to Greentree's Terms and Conditions* Agreement to this option is required.

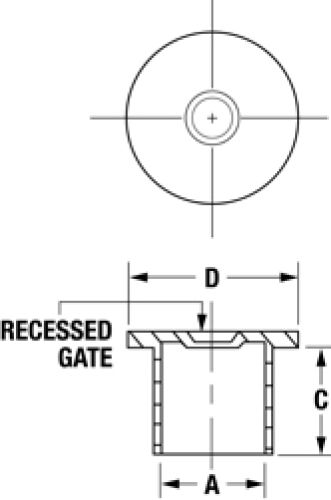

Part Number	Cap Thread Size	Dim A (mm)	Dim C (mm)	Dim D (mm)
PO-20	7/16	10.87	11.94	17.53
PO-30	1/2	12.45	11.94	19.05
PO-40	9/16	13.97	12.70	20.57
PO-50	11/16	17.17	12.70	23.88
PO-55	-	18.31	17.02	25.40
PO-60	3/4	18.75	17.02	25.40
PO-70	13/16	20.37	14.22	26.92
PO-80	7/8	21.95	16.76	28.45
PO-90	1	25.15	16.76	31.75
PO-100	1-1/16	26.70	19.05	33.27
PO-110	1-3/16	29.85	19.05	36.58
PO-120	1-5/16	32.97	19.05	39.62
PO-130	1-7/16	36.22	19.05	42.93
PO-140	1-5/8	40.94	21.59	47.75
PO-150	1-11/16	42.52	21.59	49.28
PO-160	1-7/8	47.27	24.64	53.85
PO-170	2	50.42	27.69	57.15
PO-180	2-1/2	63.02	30.99	69.85
