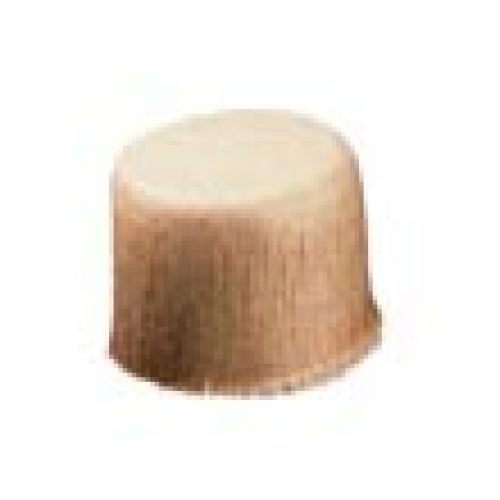

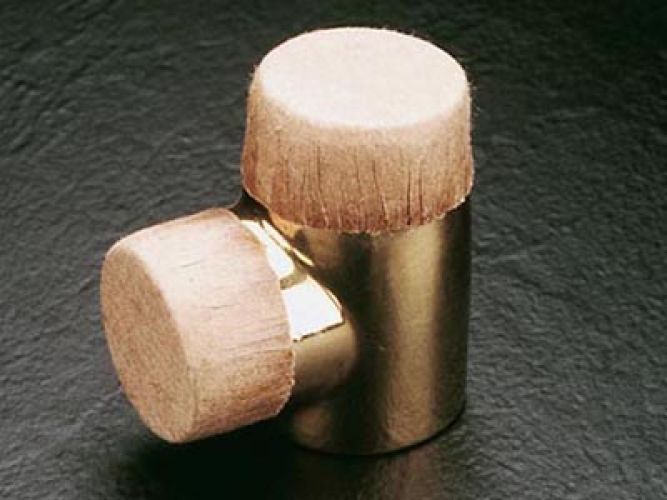

Paper Tapered Caps

Manufactured from natural paper which is 100% recyclable, the PTC Series paper tapered caps are the answer for applications requiring environmentally friendly components. The special paper used in the manufacture of paper caps is formulated from a blend of 90% virgin pulp and 10% post-consumer recycled paper. These closures will withstand temperatures up to 204°C. Making them ideal for high-temperature application.

Made from recycled material
100% Recyclable
Intermittent temperatures to 204ºC

Material: 90 lb. paperboard
Standard Colour: Brown

Type: Masking Products, Masking Caps, Protection & Finishing , Caps

Material: Other Materials, Paper

Applications: Hydraulics

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Message

I agree to Greentree's Terms and Conditions* Agreement to this option is required.

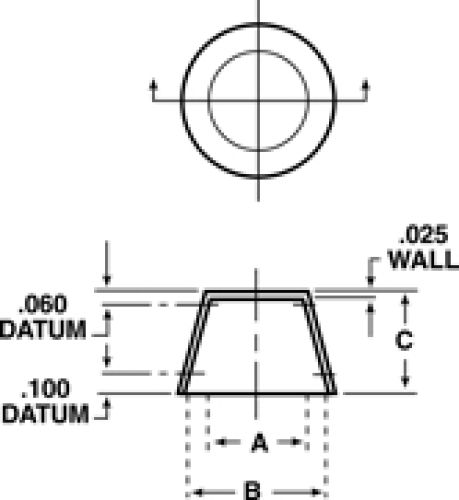

Part Number	Dim A (mm)	Dim B (mm)	Dim C (mm)	Pipe Size
PTC-S-26-3	8.89	10.16	10.16	1/8
PTC-S-41-3	11.94	12.45	13.46	1/4
PTC-S-27-3	19.81	21.08	19.56	1/2
PTC-S-10-3	32.26	32.00	18.54	1
PTC-S-98-3	46.48	48.01	23.88	1-1/2
PTC-S-67-3X	71.88	72.39	24.64	2-1/2
PTC-S-25-3	84.33	92.20	28.45	3

Part Number

Dim A (mm)

Dim B (mm)

Dim C (mm)

Pipe Size

PTC-S-26-3

8.89

10.16

1/8

PTC-S-41-3

11.94

12.45

13.46

1/4

PTC-S-27-3

19.81

21.08

19.56

1/2

PTC-S-10-3

32.26

32.00

18.54

PTC-S-98-3

46.48

48.01

23.88

1-1/2

PTC-S-67-3X

71.88

72.39

24.64

2-1/2

PTC-S-25-3

84.33

92.20

28.45
