Tapered Caps & Plugs with Extra-Wide, Extra-Thick Flanges

The extra-wide flange of the WWX Series provides extended visibility. The fail-proof design prevents the mating component from being installed without first removing the cap. Now available in 17 sizes, this versatile part may easily be used as a cap or plug, depending on application.

Highly visible design
Easy to install and remove

Material: Low-density polyethylene

Standard Colour: Yellow

Type: Fitting Protection, Protection & Finishing , Caps, Pipe Caps & Pipe Protection, Plugs, Thread & Flange Protection

Material: Polyethylene, LDPE

Applications: Automotive

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Message

I agree to Greentree's Terms and Conditions* Agreement to this option is required.

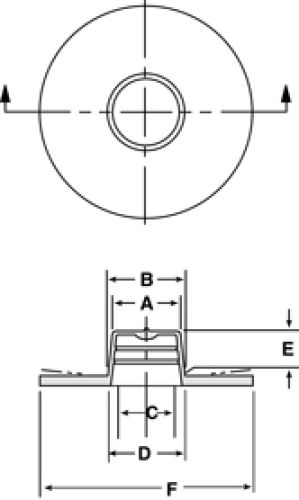

Part Number	Dim A (mm)	Dim B (mm)	Dim C (mm)	Dim D (mm)	Dim E (mm)	Dim F (mm)
WWX-8	15.95	18.42	14.38	16.33	11.18	56.64
WWX-10	19.18	22.10	17.42	20.02	12.70	60.20
WWX-12	22.02	24.77	20.27	22.58	14.22	62.99
WWX-13	24.99	28.07	23.09	25.76	16.76	66.29
WWX-14	28.19	31.83	26.57	29.74	16.76	69.34
WWX-15	31.42	35.10	29.74	32.79	16.76	73.15
WWX-16	33.32	37.21	31.57	34.93	16.76	75.44
WWX-17	36.88	40.72	35.23	38.58	16.76	78.74
WWX-18	40.13	43.54	38.43	41.25	16.76	81.53
WWX-21	48.95	52.27	47.42	50.11	16.76	90.42
WWX-230	53.85	58.17	51.71	56.13	25.40	96.27
WWX-250	60.83	66.09	58.98	64.26	28.70	104.14
WWX-44	67.01	70.08	64.69	67.82	28.70	108.20
WWX-500	72.39	75.69	70.79	74.17	19.05	107.95
WWX-55A	75.95	81.71	74.17	79.50	25.40	104.65
WWX-501	84.33	87.83	82.40	86.36	22.35	123.95
WWX-1063	99.82	103.38	98.04	101.60	19.05	136.65
