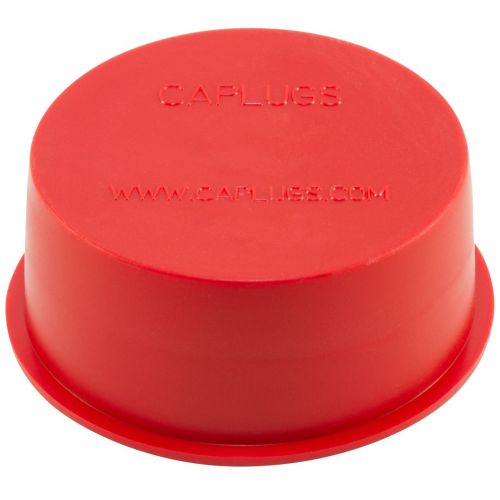

Tapered Vinyl Caps & Plugs

TV Series features an injection-moulded vinyl tapered design that can be used as a cap or a plug. Using an A-80 Shore durometer (hardness) vinyl, these caps resist tearing, cracking, splitting and shredding. Highly flexible, they enable snug fits even with smaller dimensions and irregular shapes.

Easy installation and removal
(-TAB) parts have a side pull-tab on flange

Material: Vinyl

Standard Colour: Red

Type: Fitting Protection, Protection & Finishing , Caps, Pipe Caps & Pipe Protection, Plugs, Thread & Flange Protection

Material: Vinyl

Applications: Masking, Medical

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Message

I agree to Greentree's Terms and Conditions* Agreement to this option is required.

Part Number	Dim A (mm)	Dim B (mm)	Dim C (mm)	Dim D (mm)	Dim E (mm)	Dim F (mm)
TV-1	5.94	6.86	4.57	5.03	8.10	9.91
TV-2	7.62	9.22	5.54	7.49	8.76	12.70
TV-5	11.00	12.65	9.27	11.20	10.29	17.02
TV-6	12.60	14.12	11.02	12.55	10.80	18.29
TV-6A	14.48	15.72	12.62	13.87	11.86	20.57
TV-7	14.66	16.15	12.85	14.48	12.57	20.07
TV-248	15.95	19.69	14.48	17.70	18.03	22.86
TV-8-TAB	17.42	19.15	15.85	17.27	14.94	24.38
TV-8P	17.02	18.67	15.04	17.04	11.79	24.89
TV-8J	18.72	19.58	16.59	18.06	12.32	25.15
TV-9-TAB	19.30	20.78	15.75	17.22	16.00	24.38
TV-10-TAB	20.65	22.45	18.92	21.26	12.65	30.48
TV-11	21.39	22.73	19.61	21.59	15.44	27.18
TV-11A	23.75	24.89	19.69	20.83	14.48	31.50
TV-11P	21.51	23.65	19.41	21.62	16.28	27.43
TV-12	25.22	28.09	23.50	26.52	18.92	34.80
TV-12P	22.35	24.13	18.29	20.07	16.51	29.46
TV-13-TAB	26.19	29.57	24.13	27.69	19.30	33.02
TV-14	28.47	30.05	26.42	28.65	18.92	37.08
TV-14A-TAB	30.02	33.10	26.47	29.54	19.30	38.35
TV-15	34.19	36.20	30.38	32.39	22.35	41.40
TV-16	33.05	34.72	31.01	32.79	18.03	40.13
TV-16A	33.63	37.08	30.07	33.53	23.88	42.67
TV-19	38.40	40.28	34.59	36.47	19.05	47.50
TV-19A	45.03	47.52	42.34	45.06	15.88	53.34
TV-20	41.28	43.26	38.46	41.02	17.78	46.99
TV-21H	48.41	52.17	45.47	48.84	26.67	62.74
