HEZ - HEZ Series Masking
Caps feature an extra long tab centred at the top of the closure which allows the cap to be finger-removed easily, eliminating the use of tools which could damage threads or part surfaces. Ideal for masking applications during painting, plating and powder coating operations.
Material: Flex 500™ Vinyl
Standard Colour: Black
Optional Colour: Yellow
For more information or to order samples we'd be pleased to call you back.

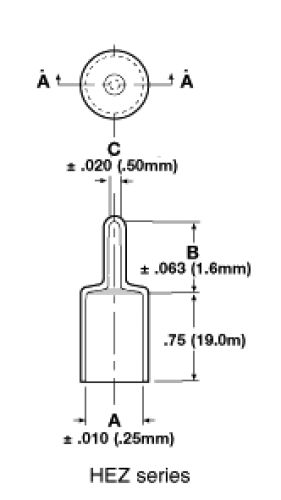

| Part Number | Dim A (mm) | Dim B (mm) | Dim C (mm) |
|---|---|---|---|
| HEZ-187-12 | 4.75 | 12.70 | 2.36 |
| HEZ-215-12 | 5.46 | 12.70 | 2.36 |
| HEZ-240-12 | 6.10 | 15.88 | 3.18 |
| HEZ-303-12 | 7.70 | 15.88 | 3.18 |
| HEZ-365-12 | 9.27 | 15.88 | 3.18 |
| HEZ-386-12 | 9.80 | 15.88 | 3.18 |
| HEZ-406-12 | 10.31 | 15.88 | 3.18 |
| HEZ-427-12 | 10.85 | 15.88 | 3.18 |
| HEZ-460-12 | 11.68 | 12.70 | 2.54 |
| HEZ-490-12 | 12.45 | 17.45 | 3.18 |
| HEZ-521-12 | 13.23 | 15.88 | 3.18 |
| HEZ-552-12 | 14.02 | 17.45 | 3.18 |
| HEZ-600-12 | 15.24 | 20.62 | 4.75 |
| HEZ-615-12 | 15.62 | 17.45 | 3.18 |
| HEZ-655-12 | 16.64 | 22.23 | 4.75 |
| HEZ-670-12 | 17.02 | 20.32 | 4.83 |
| HEZ-677-12 | 17.20 | 20.62 | 4.75 |
| HEZ-695-12 | 17.65 | 20.62 | 4.75 |
| HEZ-735-12 | 18.67 | 20.62 | 4.75 |
| HEZ-760-12 | 19.30 | 20.32 | 4.83 |
| HEZ-797-12 | 20.24 | 20.62 | 4.75 |
| HEZ-835-12 | 21.21 | 21.41 | 4.75 |
| HEZ-860-12 | 21.84 | 21.41 | 4.75 |
| HEZ-922-12 | 23.42 | 22.23 | 4.75 |
| HEZ-985-12 | 25.02 | 22.23 | 4.75 |
| HEZ-1048-12 | 26.62 | 25.40 | 4.75 |
| HEZ-1110-12 | 28.19 | 28.58 | 4.75 |
| HEZ-1175-12 | 29.85 | 19.05 | 8.26 |
| HEZ-1230-12 | 31.24 | 28.58 | 4.75 |
| HEZ-1355-12 | 34.42 | 28.58 | 6.35 |
| HEZ-1480-12 | 37.59 | 25.40 | 6.35 |
