BWNP Series plugs

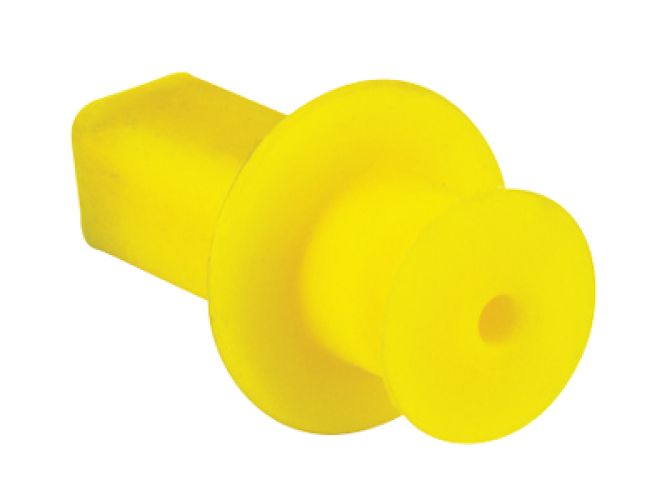

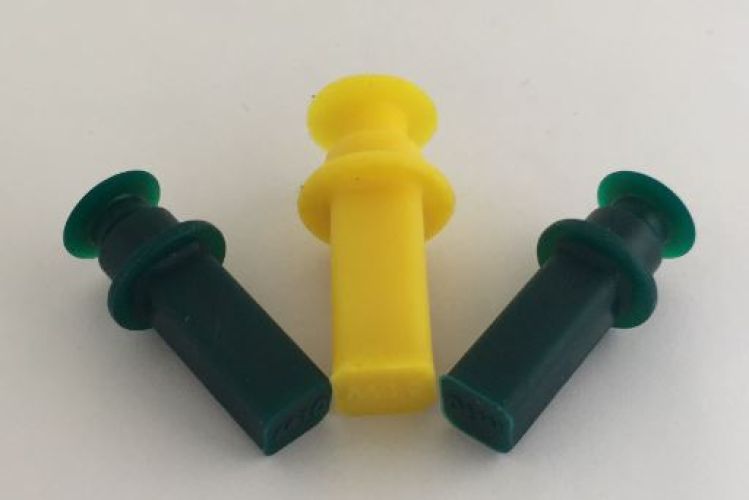

BWNP Series plugs are designed to mask blind weld nuts where it is not possible to thread a mask through the weld nut or when it’s easier to install a mask into the weld nut from one side. Manufactured from our material, these plugs are ideal for use in high temperature finishing processes such as powder coating, e-coating, plating and anodizing.

Multiple applications
Reusable

Material: Silicone
Standard Color: Various

Type: Masking Products, Masking Plugs

Material: Silicone

Applications: Masking

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Message

I agree to Greentree's Terms and Conditions* Agreement to this option is required.

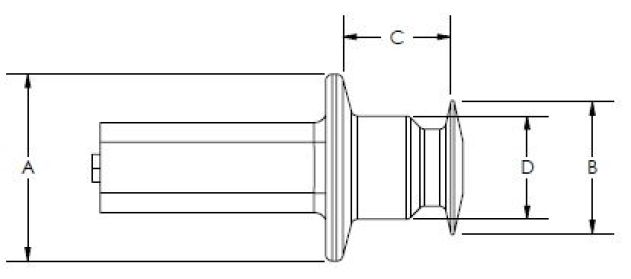

Part Number	Dim A (mm)	Dim B (mm)	Dim C (mm)	Dim D (mm)
BWNP-M6	8.71	5.97	5.16	4.62
BWNP-M8	11.25	8.00	6.91	6.35
BWNP-M10	14.48	10.21	8.38	8.00
BWNP-M12	17.86	12.37	9.75	9.78
BWNP-M16	23.06	16.31	12.88	13.59

Part Number

Dim A (mm)

Dim B (mm)

Dim C (mm)

Dim D (mm)

BWNP-M6

8.71

5.97

5.16

4.62

BWNP-M8

11.25

8.00

6.91

6.35

BWNP-M10

14.48

10.21

8.38

8.00

BWNP-M12

17.86

12.37

9.75

9.78

BWNP-M16

23.06

16.31

12.88

13.59
